Investigation
Now we can investigate the individual speakers in the front door closely. For those of you just tuning in now, this is the BMW 325i / 330i...
The BMW tweeter is attached to the door, while the enclosure peels back. It looks like a cheap poly dome.
|
 |
The tweeter is marked "BMW", with a rating of 8 ohms (not 4!). The plastic frame that holds it has a 1.00" diameter cup, but could be modified (cut) to hold a tweeter driver with 1.25" max diameter. The depth behind the stock plastic frame is limited at one corner to 0.50", though the greater chamber has enough volume to hold a significantly deeper tweeter.
|
 |
|
The panel-mounted midrange speaker is also marked "BMW", with the same 8 ohm rating as the tweeter. It's a foam-suspended paper cone.
This midrange has 2.75" OD, though it looks like the plastic ring and mount could easily be pulled off, leaving a large flat space to mount anything else. The depth of the stock BMW driver is 1.25", while it seems the door panel could accomodate more space if needed.
|
 |
The door's bass speaker is marked "BMW" / "HAES", with a rating of 2 ohms. This is a plain-paper, foam-rolled, plastic-framed driver. The OD is 6.25", and this is a hard maximum imposed by the 3 plastic panel pegs - You really shouldn't try to use anything bigger for this woofer. The depth of this current driver is 2.75".
|
 |
Rear Deck

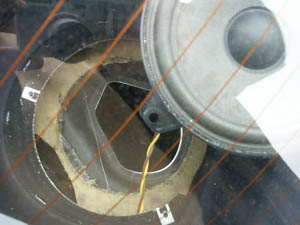

This mid-bass speaker is the same, plain-paper / foam driver from the front door panel (6.25" OD, 2 ohms). Underneath, there's a recycled composite enclosure that you can easily remove for a bit more space. An open hole is cut into the trunk, though it's not big enough for a deep magnet. The hard max depth is 3.00", imposed by the sheet metal.
|
 |
|
|
