I just did a rebuild on the drivers door lock on my 1988 325is.
The new locks cyl are a better design, the old one has
an internal ball bearing which is the failure point from concentrating
too much force on the cyl, wearing a grove, causing the failure.
The new lock cyl has a roller bearing with much more surface area
over which to distribute the load.

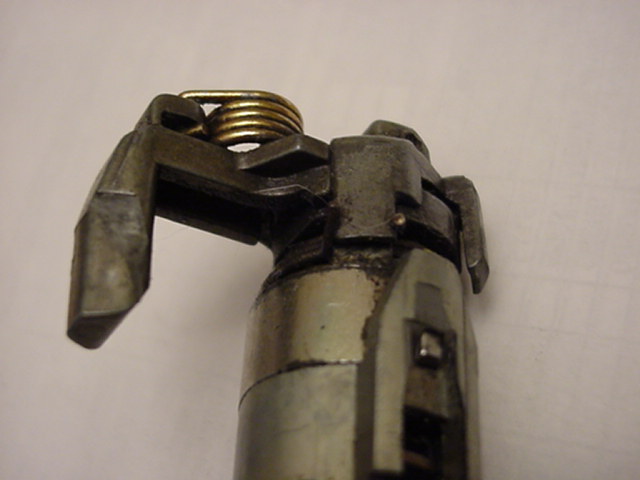

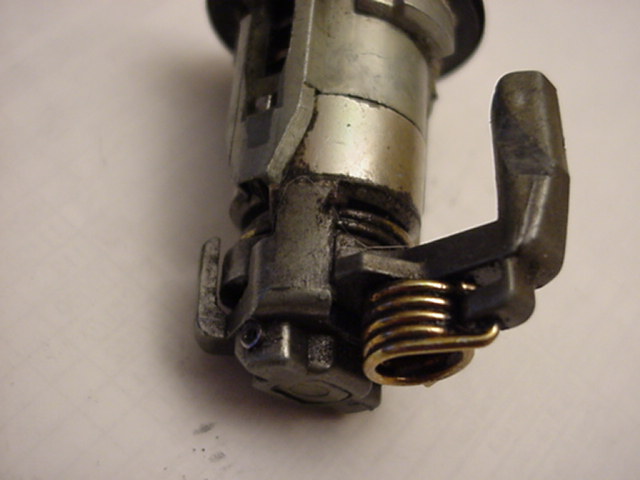

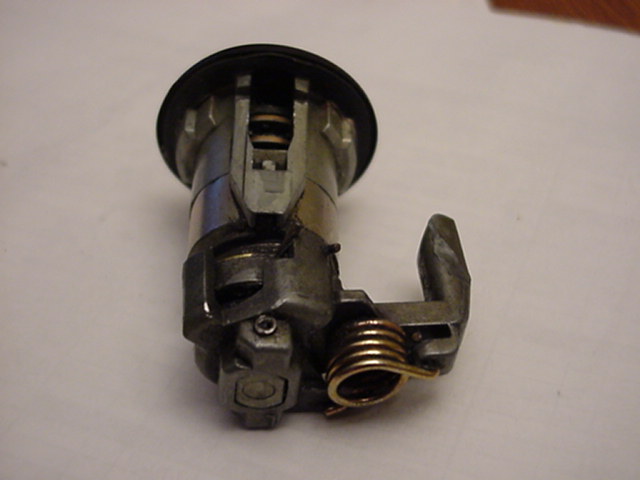

If you need pics of what the lock cyl is supposed to look like, check these out:
Big
1
2
3
5
6
7
8
9
10
To remove the existing lock cyl:
- remove door panel
- peal back protective plastic on inside of door near the lock mech.
- using a long screwdriver, pry the C clip holding the lock in place
to the right. The C clip has a lip so it's easy to get the screwdriver
in there and twist to get it started.
- careful you don't drop the C clip
- once the C clip is out, the lock cyl comes straight out, with
a twisting, 90 deg pivot to clear the actuating arm on the end.
Hope this ASCII art makes sense
#1 o <-lock cyl
----]o[-------------outer door skin
--|
#2 oo-l <-lock cyl
----]l[-------------outer door skin
#3 oo-l <-lock cyl
l
----] [-------------outer door skin
You have two choices for the lock cylinder:
- buy a whole new assembley with 2 new keys for aprox $70 from the dealer
- buy a rebuild kit that you can create a lock cyl keyed to your
car for aprox $32 from your local BMW dealer.
I chose to go this route as I hate carrying around a bunch of keys,
and it was a heck of a lot cheaper!
Keying the new cylinder
- 51-21-9-061-343 (Central locking, left side)
- 51-21-9-556-313 (all other door locks)
To install:
- insert the cylinder, reverse of above.
- be sure the actuating arm goes into it's groove
- seat the cyl against the outer door skin
- time for the C clip, you have to start it by hand
- hold the cyl in place with your left hand
- try out the lock action to insure it works correctly
- get your right hand/arm all greasy inserting the C clip
in place, just get it started, then use your trusty screwdriver
to get it seated into place
- restick plastic
- reinstall door panel
Dale
dale_at_unofficialbmw.com
